Below Bum Breakout Bracket

* BACK IN STOCK MIDDLE OF OCTOBER 2025

** Please Note:  This has only been tested to work on vans WITHOUT factory swivels, AKA vans with the taller risers underneath the seats.

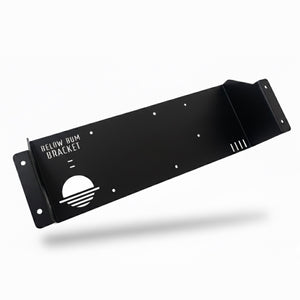

Unleash your vans electrical system with the the Below Bum Breakout Bracket a universal(ish) bracket designed for organized power distribution from the tucked away and buried factory power distribution F150/4 Fuse Box under the drivers seat (without factory swivels) in a Sprinter Van.  This brings everything up to a much more serviceable place allowing you to add power for things that run off the starter battery like an Air Compressor, Winch, Audio System, connection point for your B2B Chargers like the Victron Orion XS, etc.

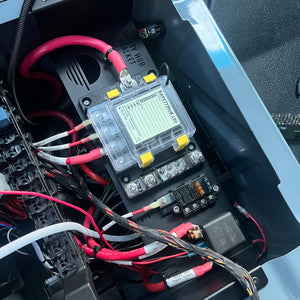

It's designed to hold a BlueSea Safety Hub 150 and a Blue Sea 5045 4 slot Fuse Block (SOLD SEPARATELY).  However, you can also drill and add your own holes anywhere since it's made from Aluminum.  If you do drill your own holes, we recommend using rivnuts or similar for mounting so you don't have to worry about getting a nut underneath the bracket to tighten things together.

You can see how we use it in the ARB Compressor YouTube Video below.  It's set to play right when we talk about all the things we have mounted to this bracket and why.  In order to bring power up from the Factory Fuse box you'll most likely need the factory T-bus Bar and a fuse also detailed in the video.

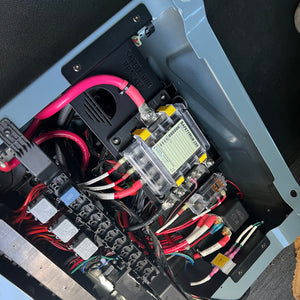

While you can use this bracket for whatever you'd like, we use the BlueSea Safety Hub 150 as distribution for our starter battery power and we use the BlueSea 5045 as a tie in to the EK1 Ignition Terminal.  We also added a relay for our audio system (switching from the van head unit to a house unit in the back) and a diode to prevent back flow current while switching this relay from two sources.
