Grimm Offroad Braided Reinforced Air Hose
Grimm Offroad Braided Reinforced Air Hose
Grimm Offroad Braided Reinforced Air Hose
Grimm Offroad Braided Reinforced Air Hose

Grimm Offroad

Grimm Offroad Braided Reinforced Air Hose

Sale price $45.00

Shipping calculated at checkout

Only 2 in stock

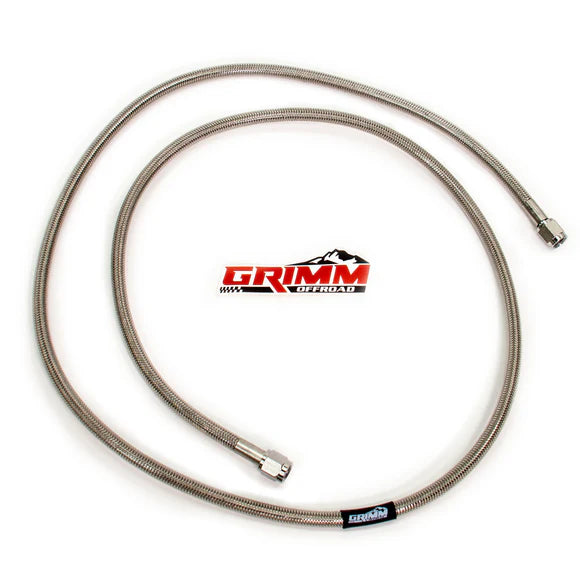

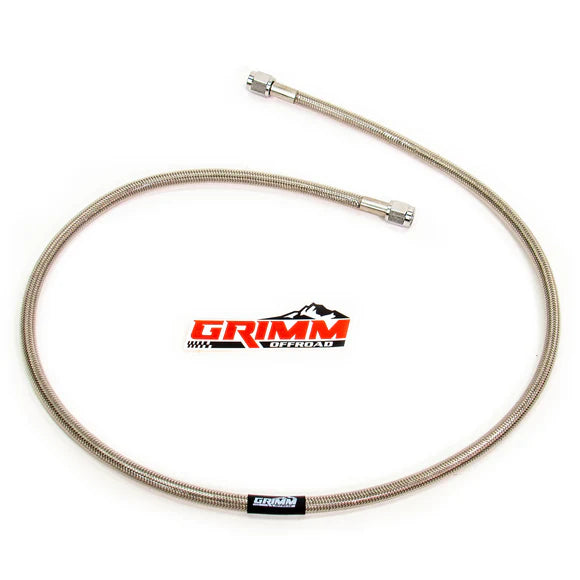

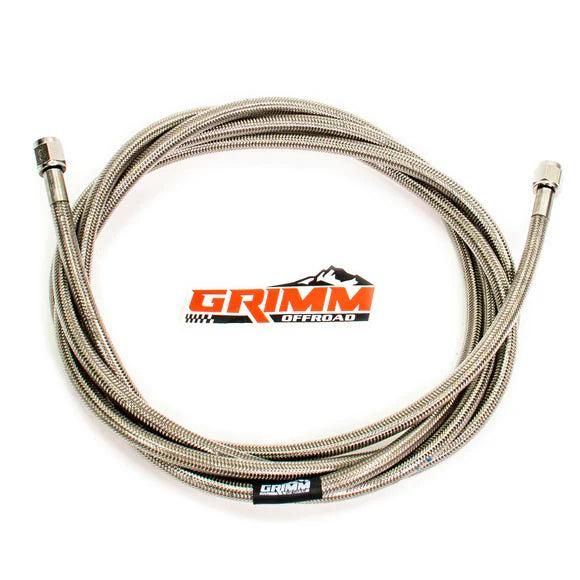

Upgrade your onboard air system with the Grimm Offroad Braided Reinforced Air Hose — available in 40-inch, 60-inch and 120-inch lengths. Built for rugged off-road use, this heavy-duty air hose is pressure-rated and protected by a stainless steel outer braid for superior durability, flexibility, and abrasion resistance.  Grimm Offroad delivers reliable performance when you need it most. Designed to work seamlessly with most ARB and onboard air systems, this hose is a trusted addition to any overland rig or trail setup.

Made from 1/4 inch PTFE lined 304 stainless steel braided hose with 304 stainless steel crimp collars. An abrasion-resistant clear PVC cover protects the line from damage and prevents the braided line from damaging other surfaces. Straight, JIC-04, triple chrome plated swivel flare fittings are used on both ends to allow easy connections to most air compressor applications. Conforms to DOT 571.106 S11 standards. Available in multiple lengths to suit most applications. Limited Lifetime Warranty.

**NOTE:  The 40-inch size is recommended for connecting the Air Coupler on our Moonraker ARB Air Coupler Bracket with the ARB Compressor mounted on our Driver's Side ARB Engine Bay Bracket.

Key Features

  • 1/4 Inch PTFE lined 304 stainless steel braided hose
  • 304 stainless steel crimp collars
  • UV and abrasion-resistant clear PVC cover
  • Straight JIC-04 swivel fittings, triple chrome plated for superior corrosion resistance
  • Conforms to DOT 571-106 S11
  • Available in multiple lengths
  • Limited Lifetime Warranty
  • Made in the USA

Installation Information

2 - 120-inch lines connected with a straight union are required to span the length of a 144 sprinter.

  • Heavy-Duty Construction: Reinforced inner hose with stainless steel braided exterior
  • Extreme Flexibility: Easily routes through tight spaces without kinking
  • Off-Road Ready: Built to handle rugged environments and repeated use
  • High Pressure Rated: Withstands up to 150 PSI — ideal for air-up/down systems
  • Compatible with ARB & More: Standard 1/4 JIC fittings work with most onboard air systems
